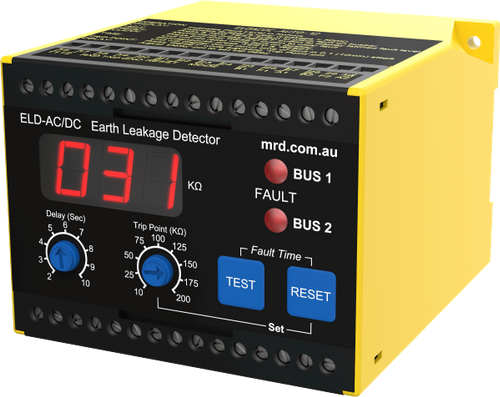

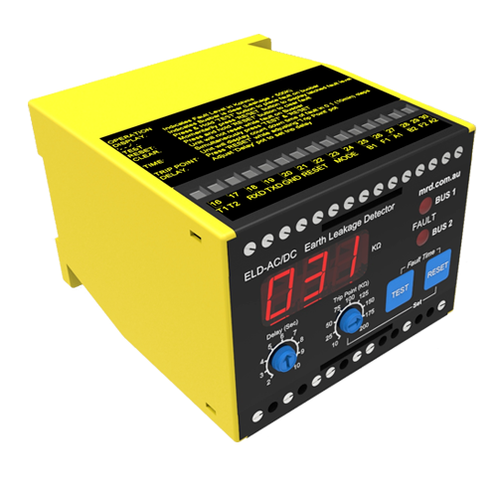

Reliable Earth Leakage Detection
Significantly reduce the risk of failure due to earth leakage faults
ELD provides constant monitoring and instant notifications of threshold breaches
Track the cause of fault using fault time log
Flexible channels monitor AC or DC busbars
Remote monitoring and logging of earth insulation
Detect and remove faults before problems occur
View Test Results on Screen
Earth Leakage Detector 100% is designed and manufactured in Australia
The interlocking circuits in railway signalling are often supplied from a battery in which neither of the poles are connected to earth.
In the event of a single fault there is no danger, however, two or more faults occurring at the same time could create a dangerous situation. Therefore it is vitally important to supervise the battery supply continuously to prevent this from happening.
Cables which run in parallel with AC electrified railways are subjected to induced voltages
If an earth leakage occurs in the cable, these voltages can disturb devices which are connected to both cables. When earth faults occur in both supply and return wires yet another hazardous condition is created.
3D Viewer
Click & Drag for 360 Degree View (Double-click for full screen mode
Our products are trusted by

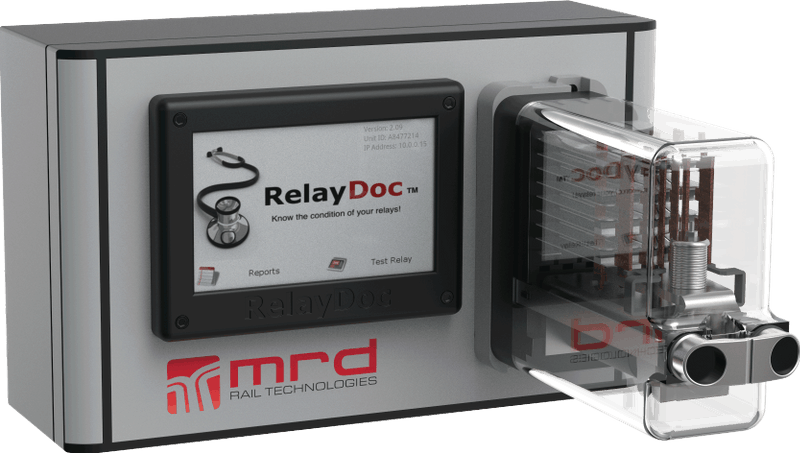

RelayDoc is a product of MRD Rail Technologies
