Logger

Multi-Channel
Remote Earth
Insulation Monitoring

Multi-channel EarthLogger monitors up to 4 different busbars, significantly reducing the likelihood of failure or accidents due to insulation faults

easy-installation

Track the cause of fault using fault time log

timeline

Flexible channels monitor AC or DC busbars

cloud-computing

Remote monitoring and logging of earth insulation

alarm

Detect and remove faults before problems occur

cardiogram

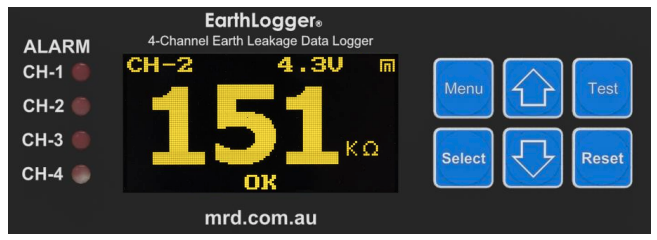

View Test Results on Screen

EarthLogger 100% is designed and manufactured in​ Australia

Despite all the safety built into electrical systems, failures can and do occur

The EarthLogger is designed to be used in unearthed IT systems where high reliability of the supply is required. Eg. railway, industrial, marine and power applications.

Insulation resistance is the determining factor with respect to personal, equipment and fire safety

The insulation resistance on new installations and electrical equipment is usually very good. Over time, however, operation causes an inevitable reduction in insulation resistance.

This degradation is monitored and safety is maintained through the use of MRD’s EarthLogger.

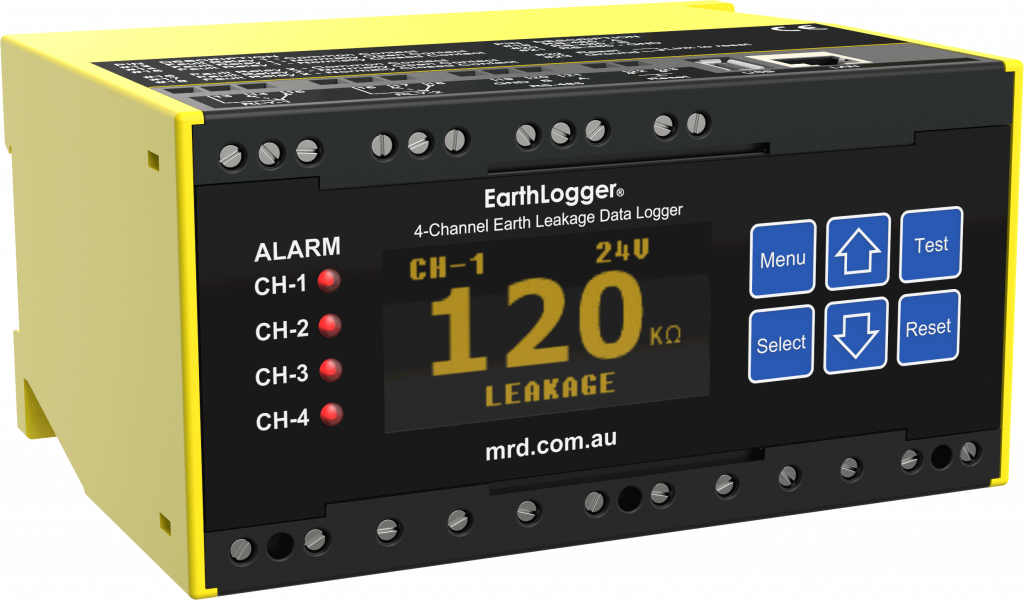

3D Viewer

Click & Drag for 360 Degree View (Double-click for full screen mode

EarthLogger serves as an early warning system by providing notifications when the impedance between an active phase conductor and earth drops below a set value

The insulation resistance is logged and data can be viewed remotely giving operators the information they need in order to take appropriate maintenance measures.

EarthLogger Frequently Asked Questions

Yes, the EarthLogger comes with a sunlight readable OLED display

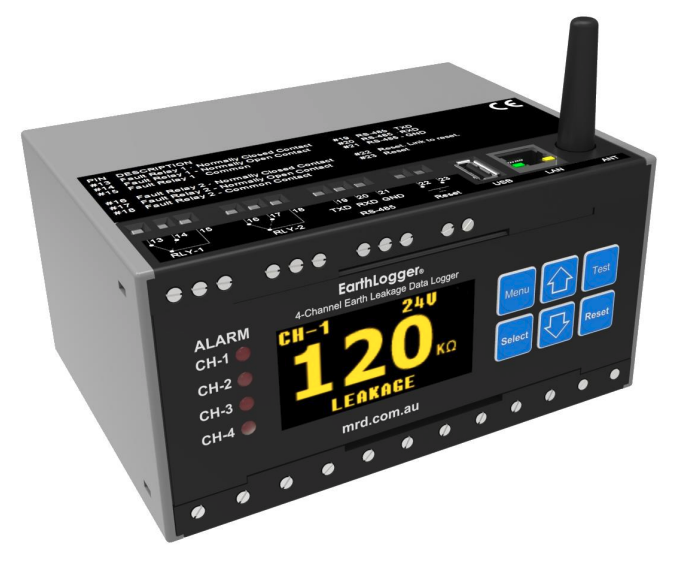

EarthLogger has the ability to remotly monitor via Ethernet or 3G/4G modem

Notifications from EarthLogger can be configured via SMS and E-Mail

No. The EarthLogger internally logs insulation resistance and busbar voltage

AC Supply Voltage

  • Supply Voltage 100 – 240V AC
  • Frequency Range 50 – 60 Hz



DC Supply Voltage

  • Supply Voltage 120 – 370V DC
